Select Research Papers

Dr. Stuart Shankland - PubMed

KI Visual Abstract KI-05-18-0613.jpg

Sex differences in transcriptomic profiles in aged
kidney cells of renin lineage

PMID: 29676999

Wang Y, Eng DG, Pippin JW, Gharib SA, McClelland A, Gross KW, Shankland SJ

aging gene dynamics.jpg

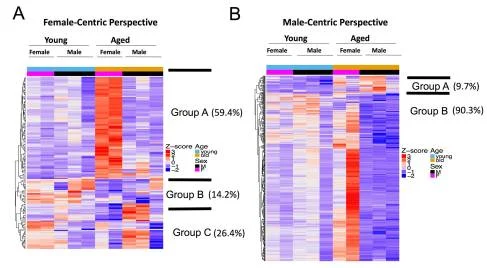

 Female and male aging gene dynamics are different. (A) Female-centric perspective. Expression pattern of aged female vs.

young female DEGs (n=159) across all age and sex conditions. Group A genes (comprises 59.4% of all DEGs) are significantly up-

regulated in aged vs. young female, but do not have any significant change in aged vs. young male. Group B genes decreased in

both aged vs. young female and aged vs. young male. Group C genes show the opposite trend, as they are down-regulated in

aged vs. young female, but up-regulatedin aged vs. young male. (B) Male-centric perspective. Expression pattern of aged male

vs. young male DEGs (n=503) across all age and sexconditions. Group A genes (comprises 9.7% of all DEGs) are up-regulated in

aged vs. young male and are also moderately up-regulated in aged vs. young female. Group B genes are significantly down-

regulated in aged vs. young male are up-regulated in aged female mice.

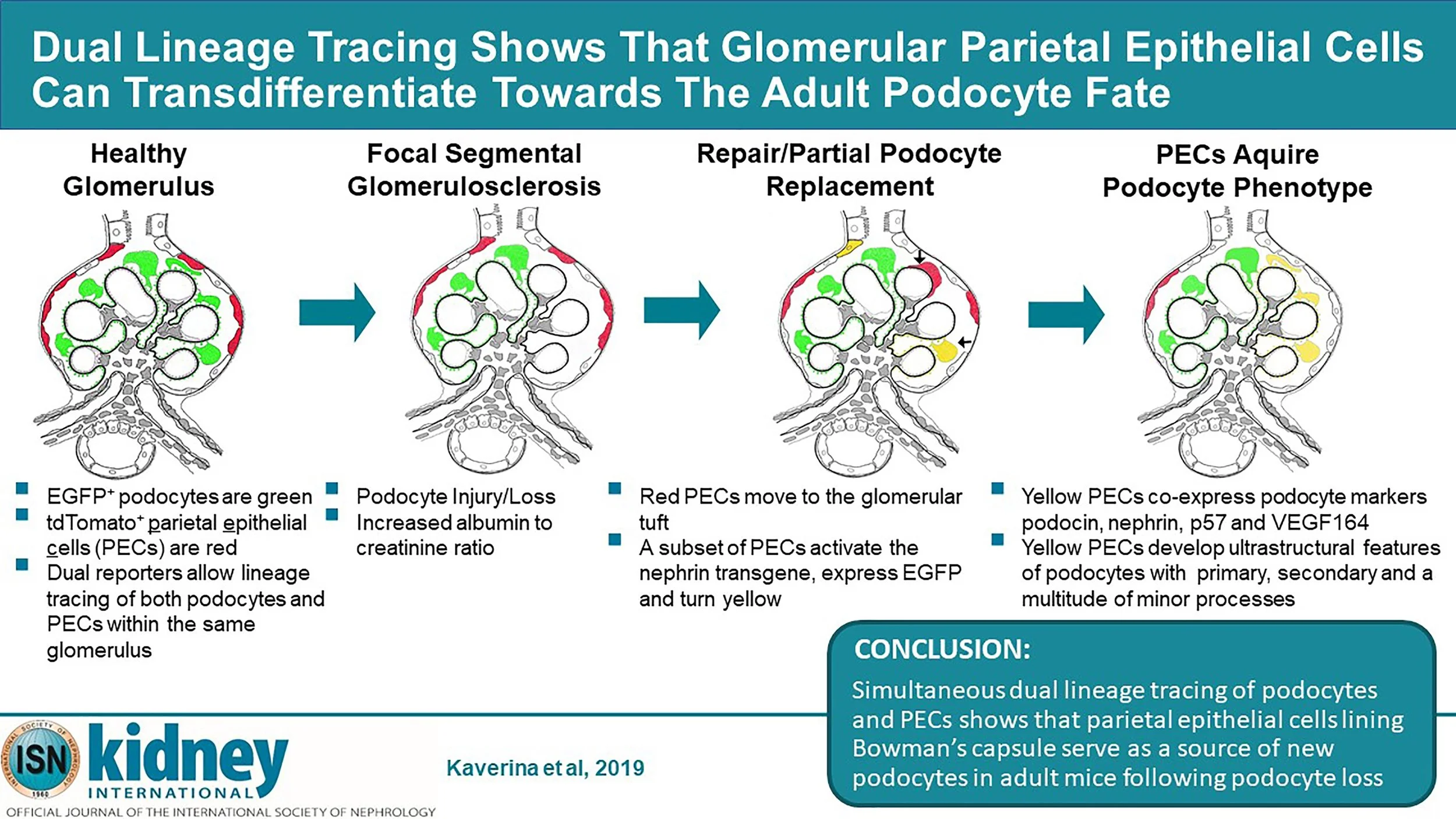

Detection of renin lineage cell transdifferentiation to podocytes in the kidney glomerulus with dual lineage tracing

PMID: 29580637

Eng DG, Kaverina NV, Schneider RRS, Freedman BS, Gross KW, Miner JH, Pippin JW, Shankland SJ


Dual reporting CoRL-PODO mice (Ren1cCreER/tdTomato/Nphs1-FLPo/FRT-EGFP) express tdTomato (red) in Cells of

Renin Lineage (CoRL)and EGFP (green) in Podocytes. In our model of experimental FSGS, we show for the first time

that two distinct cell types can be simultaneously labeled in the kidney and provide strong genetic evidence in vivo

that lost podocytes can be replaced in part by CoRL.

Lineage Tracing Aged Mouse Kidneys Shows Lower Number of Cells of Renin Lineage and Reduced Responsiveness to RAAS Inhibition

PMID: 29412700

Hamatani H, Eng DG, Kaverina NV, Gross KW, Freedman, BS, Pippin JW, Shankland SJ


Cells of renin lineage (CoRL) (light orange) surrounding the afferent arteriole (depicted by orange circle) in the

juxtaglomerular compartment in young mice were permanently labeled with td-tomato (red) following the administration

of tamoxifen at a young age.

 In young mice, total CoRL number increased following RAAS inhibition with enalapril or losartan, due to both proliferation

(purple) and recruitment (green). CoRL number decreased between the ages of 3.5 months (=age 20 years in Humans) and

24m (= age 70 years in Humans), accompanied by, and perhaps due to, increased apoptotic genes such as Programmed Cell

Death 6. In aged mice given enalapril or losartan, CoRL recruitment was detected (green), but proliferation was barely

detected (just one purple cell), leading to a smaller increase in the overall CoRL population.


We propose that the lack of proliferation in aged CoRL might be due to CoRL senescence with increased pro-scenescent

genes (p16INK4a, Lamin A and B), and reduced proliferation due to increased cell cycle inhibition by Thioredoxin-

interacting protein.

Charting the transcriptional landscape of cells of renin lineage following podocyte depletion

PMID: 29232382

McClelland AD, Lichtnekert J, Eng DG, Pippin JW, Gross KW, Gharib SA, Shankland SJ

Charting the transciptional landscape_ShanklandLab.jpg

There is strong evidence that Cells of Renin Lineage (CoRL) are a nascent source of progenitor cells winthin the kidney.

These cells have been demonstrated to move away from the juxtaglomerular apparatus onto the Bowmans' capsule and

the glomerular tuft here they de novo express markers of parietal epithelial cells and podocytes respectively.


In order to gain a broad understanding of this process, we performed microarray analysis of isolated CoRL following

depletion of podocytes in a mouse model of Focal Segmental Glomerulosclerosis (FSGS), a disease marked by podocyte

loss. In times of abrupt podocyte loss, it was found that a CoRL undergo distinct changes in gene expression which can be

broadly classified into two broadly defined categories. These changesare also regulated by a small set of transcription

factors, proteins that control the expression activity of certain genes.

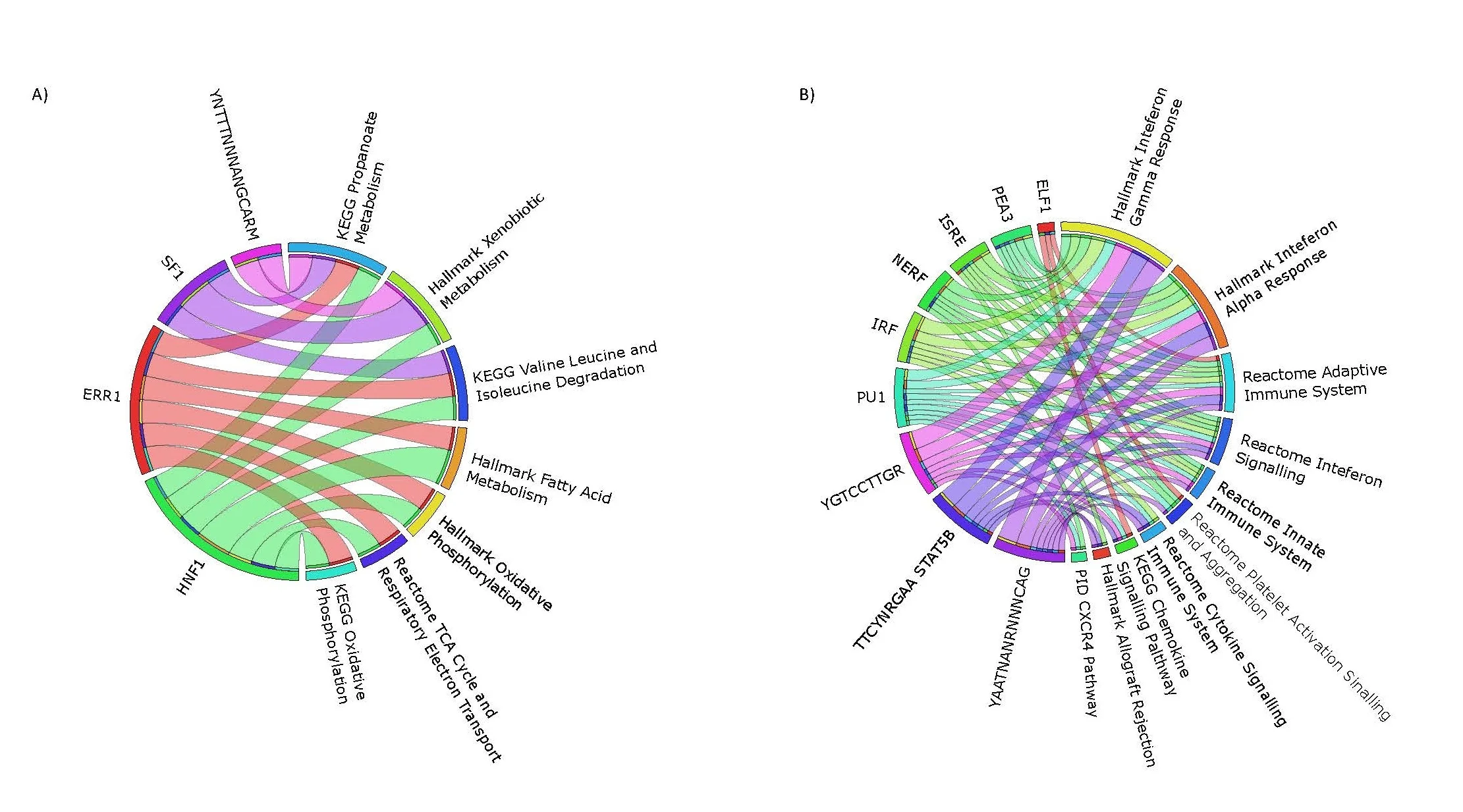

In the image above, is a representation of the relationship between changes in gene activity (clustered by pathway in the

right half of eachpanel) and transcription factors (the left half of each panel). The thickness of the ribbons connecting the

left and right half of each panel represent the number of genes within a pathway which are targets of a given transcription

factor. In the left panel, a number of pathways related to mitochondrial metabolic processes are listed along with

transcription factors which target genes within these pathways. These pathways are putitively downregulated according

to gene-set enrichment analysis testing. Conversely, the right panel depicts pathways involved in inflammatory signalling

and transcription factors associated with them. Collectively, these data demonstrate gross upregulated of inflammatory

responses and downregulation of metabolic processes which may indicate an stress/activation state and an increase in

phenotypic plasticity respectively.

WT1 Is Necessary for the Proliferation and Migration of Cells of Renin Lineage Following Kidney Podocyte Depletion

PMID: 28966119

Kaverina NV, Eng DG, Largent AD, Daehn I, Chang A, Gross KW, Pippin JW, Hohenstein P, Shankland SJ


Cells of renin lineage (CoRL) begin to de novo express the podocyte markers in enalapril treated RenWt1 +/+ mice at

D28 of FSGS following podocyte depletion. Representative image of three color staining for podocin (podocyte

marker, green), RFP identifies td-Tomato-labeled CoRL, red) and DAPI.(nuclear, blue).
